GD UAV

Long endurance Hybrid
(gasoline & battery)

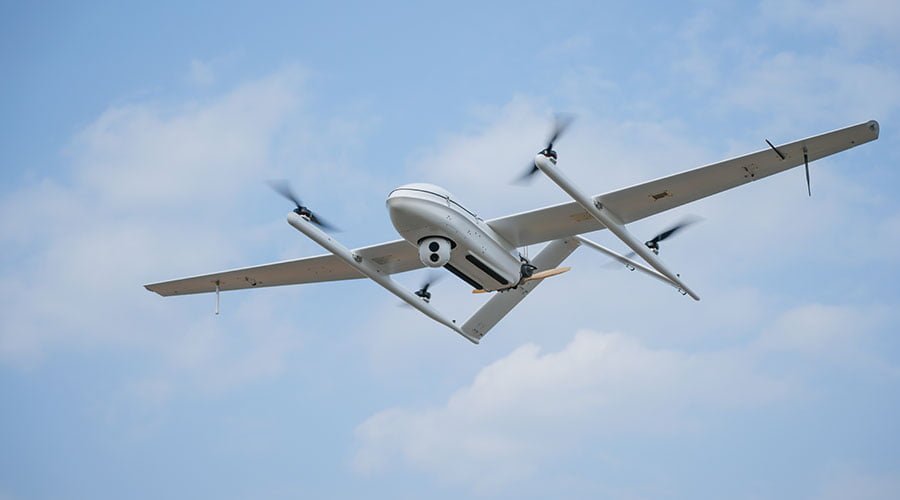

GD UAV

Long endurance Hybrid (gasoline & battery)

With a hybrid-wing layout and oil-electric power system, our GD UAV is a brand new generation or large payload and long-endurance drones.

Equipped with the state-of-the-art EO/IR/LR triple sensor stabilized gimbal camera which is integrated with visible light sensor, infrared sensor, and laser rangefinder, our UAV can be used for various application scenarios, such as intelligence reconnaissance, rescue and searching, anti-smuggling, border patrolling, environmental monitoring, forest fire prevention.

Benefiting from the intelligent system, the our UAV takes information acquisition to a whole new level. It can achieve autonomous flight, take-off and landing on a mobile platform, video surveillance, real-time mosaic, AI processing, multi-station networking, long-range control, etc., which provide unparalleled efficiency and productivity.

ADVANTAGES
  • Modular Design

The whole system adopts modular design and can be quickly assembled and detached. Field deploy time <15 min, withdrawal time <10 min.

  • Aviation Grade Reliability

High-altitude performance | Ultra-long endurance | Heated and drained airspeed tube | Super waterproof performance | Dual differential GPS | Dual magnetic compass.

  • EFI Engine

With 4 stroke engine features low acoustic, less vibration and longer TBO GD UAV features structurally stability and reliability in harsh environment.

  • Advanced Flight Control and Navigation System

High precision MEMS | High performance IMU | Active safety technology | Autonomous flight | Anti-electromagnetic interference | Data encryption function

SPECIFICATIONS

HARDWARE
FUSELAGE / WINGSPAN2.4m / 4.4m
4 STROKE ENGINEEFI Gasoline
MTOV38kg
COMMUNICATION RANGE80-100km
DGPSRTK / PPK
NAVIGATION LIGHTStandard
CARRYING CASE SIZE (LxWxH)1700x700x350, 1700x700x450mm
FLIGHT
ENDURANCE8h
CRUISING SPEED / MAX. FLIGHT SPEED90km/h / 120km/h
WIND RESISTANCE13.9-17.1m/s
MAX. TAKEOFF ALTITUDE / CEILING3500m / 6000m
TAKEOFF & LANDINGVTOL
