KWT-Z4M-H

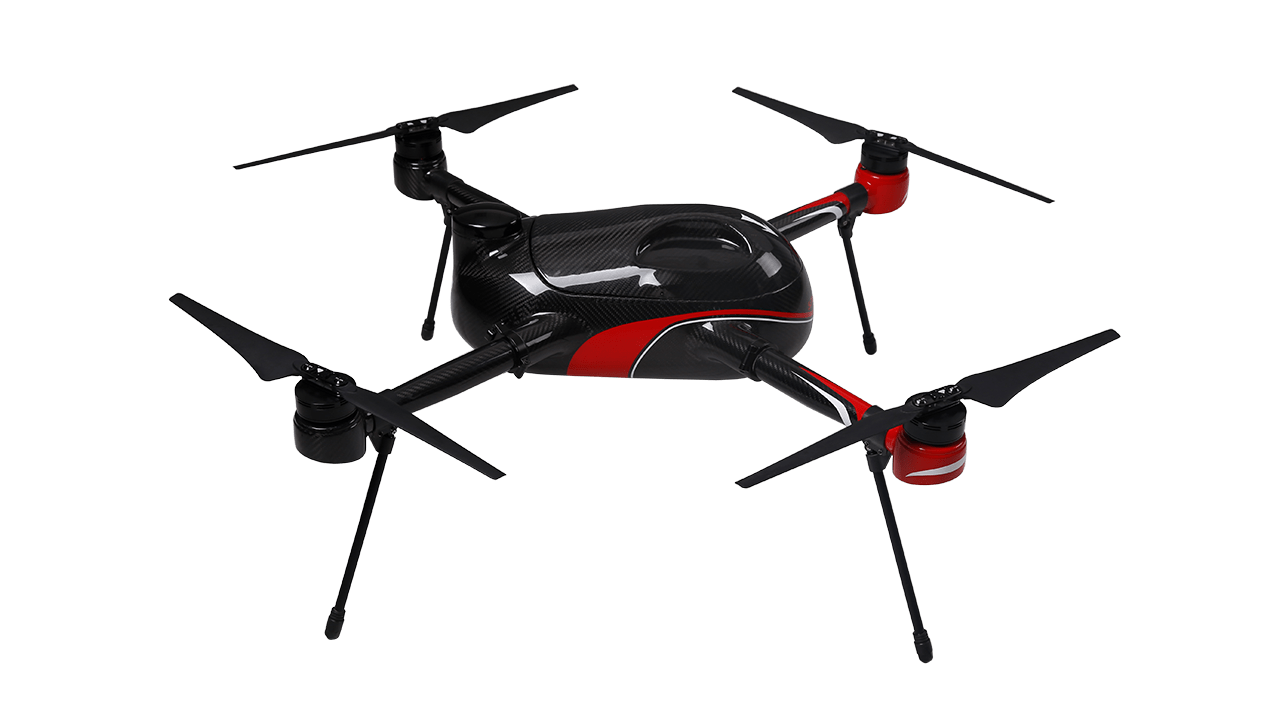

KWT-Z4M-H is a folding quadrotor drone. It is a very mature and economical, multifunctional and multipurpose drone. Full carbon fiber integrated molding process, good wind resistance, rainproof, support manual precise control and autonomous flight of the route, with long flight time.
KWT-Z4M-H can be equipped with various payloads for aerial photography, industrial thermal imaging, shouting, tossing, mapping, gas detection, automatic water fetching, lighting, rocket launchers and light and small communication. It has the typical multi-functional characteristics.
This model has strong environmental adaptability. It can be used in harsh environments such as humidity, heat, corrosion and salt. It has very reliable safety performance.
Full carbon fiber fuselage, good rigidity, light weight, flight time with 500 g load is more than 40 minutes.
| FEATURES | |
| Maximum wingspan | 1490 ±10 mm |
| Wheelbase of symmetrical motor | 940 ±10 mm |
| No-load take-off weight | 7.5 ±0.2 Kg |
| Maximum take-off weight | ≤ 10.5 Kg |
| Mission load | ≤ 3 Kg |
| No-load hovering time | ≥ 50 min (below 1000 m above sea level, 25 °C) |
| 3 Kg load hovering time | ≥ 28 min (below 1000 m above sea level, 25 °C) |
| Maximum flight speed | 15 m/s |
| Maximum climbing speed | 4 m/s |
| Maximum descending speed | 2 m/s |
| Relative climbing height | 4000 m (plain) |
| Maximum working altitude | 5000 m (altitude, relative climbing 2000 m) |
| Wind resistance | 10.8 ∼ 13.8 m/s |
| GPS hovering accuracy | Vertical: ±1.5 m; Horizontal: ±2 m |
| Control distance of remote controller | ≥ 7 Km |
| Ground station control distance | ≥ 10 Km |
| Packing box size | 620*400*730 ±10 mm |
| Empty drone weight | 3.7 ±0.2 Kg |
