KWT-X6L
The KWT-X6L six-rotor drone is a very mature multi-functional, multi-purpose drone. It is the first drone in China that adopts a full-carbon fiber integrated molding process designed with an upturned arm. It has good wind resistance and rain resistance. It adopts a tool-free quick-release structure, supports manual precise control and autonomous flight of the route, and has a long flight time.
KWT-X6L can be equipped with various payloads for aerial photography, industrial thermal imaging, shouting, tossing, mapping, gas detection, automatic water fetching, lighting, rocket launchers and light and small communication. It has the typical multi-functional characteristics.
This model has strong environmental adaptability and can work in plateau areas 5000 meters above sea level. It can be used in harsh environments such as humidity, heat, corrosion and salt. It has very reliable safety performance, and it has the protection function of broken blades.
The aircraft can be matched with a mooring ground control unit to become a complete mooring drone system. It can work continuously for a long time through the ground power supply.
Full carbon fiber fuselage, good rigidity, light weight, flight time with 500g load is more than 65 minutes.

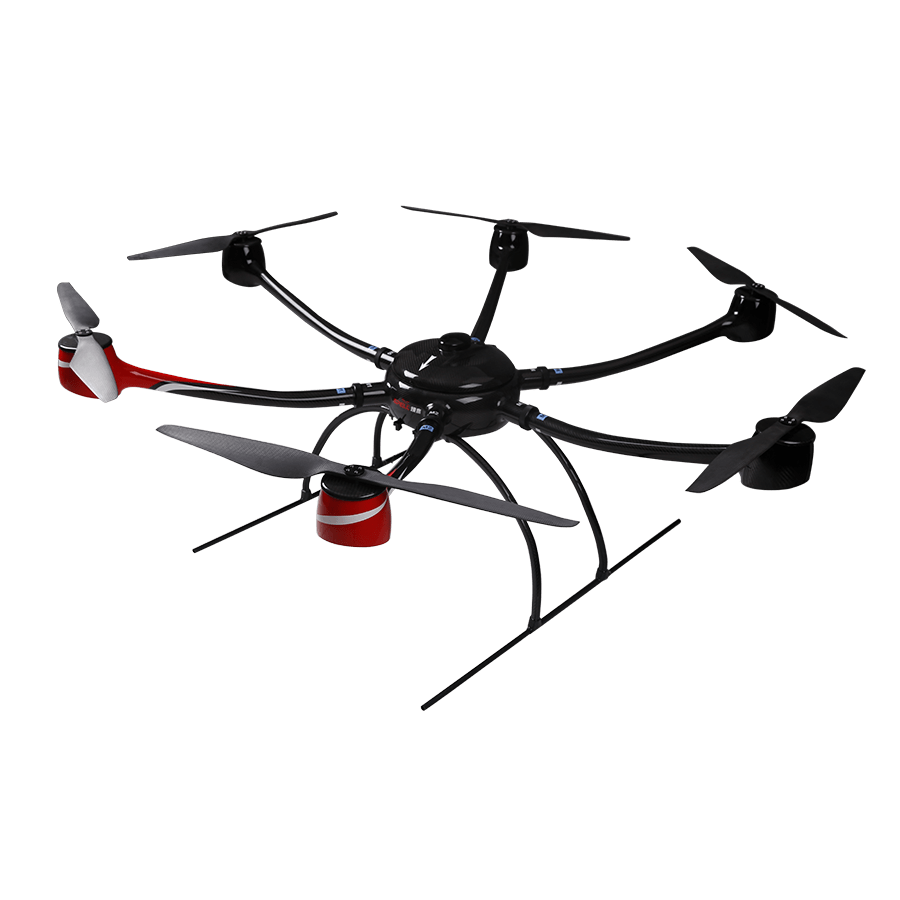

Upturned arm design, increase flight stability, plug-in quick release structure, deployment time is less than 5 minutes.
| FEATURES | |
| Maximum wingspan | 2323 ±20 mm |
| Motor wheelbase | 1600 ±20 mm |
| No-load take-off weight | 11 ±0.2 Kg |
| Maximum take-off weight | ≤ 16.2 Kg |
| Mission load | ≤ 5 Kg |
| No-load hovering time | ≥ 70 min (below 1000 m above sea level, 25 °C) |
| 5 Kg load hovering time | ≥ 40 min (below 1000 m above sea level, 25 °C) |
| Maximum flight speed | 15 m/s |
| Maximum climbing speed | 4 m/s |
| Maximum descending speed | 2 m/s |
| Relative climbing height | 4000 m (plain) |
| Maximum working altitude | 5000 m (altitude, relative climbing 2000 m) |
| Wind resistance | 13.9 ∼ 17.1 m/s |
| GPS hovering accuracy | Vertical: ±1.5 m; Horizontal: ±2 m |
| Maximum remote control distance | 7 Km |
| Ground station maximum control distance | 10 Km |
| Arm packing box size | 1120*430*470 ±20 mm |
| Body packing box size | 1070*530*375 ±20 mm |
| Empty weight | 5.8 ±0.2 Kg |
