KWT-X6H
KWT-X6H is a hybrid electric six-rotor drone. It adopts a hybrid electric power system with a load life of up to 2.5H, a maximum load of 3KG, and a flight radius of up to 40 kilometers. The KWT-X6H hybrid electric six-rotor UAV has the characteristics of long flight distance, safe and easy to use, and is suitable for flying in cold and sea areas.

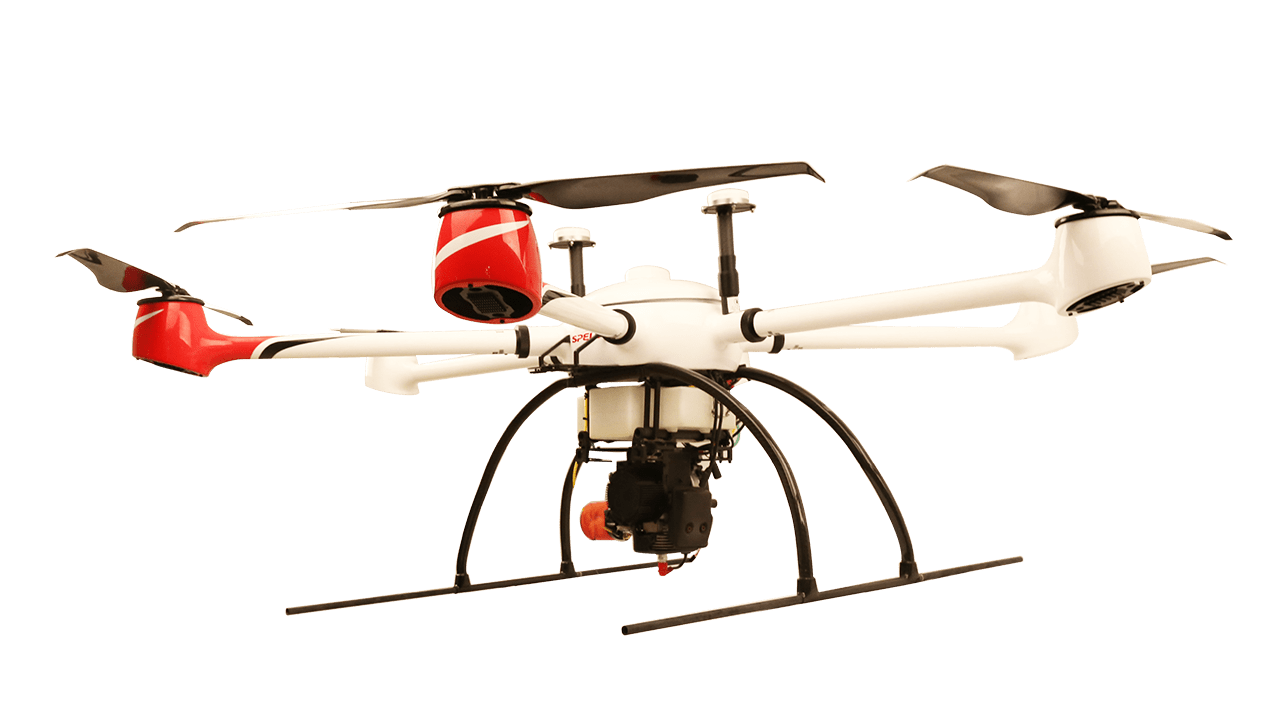

Sufficient power, long battery life, can carry loads of different weights, and cope with cold and offshore operations.
The fuel tank is made of flame-retardant material, with spare battery for emergency landing and broken paddle protection.

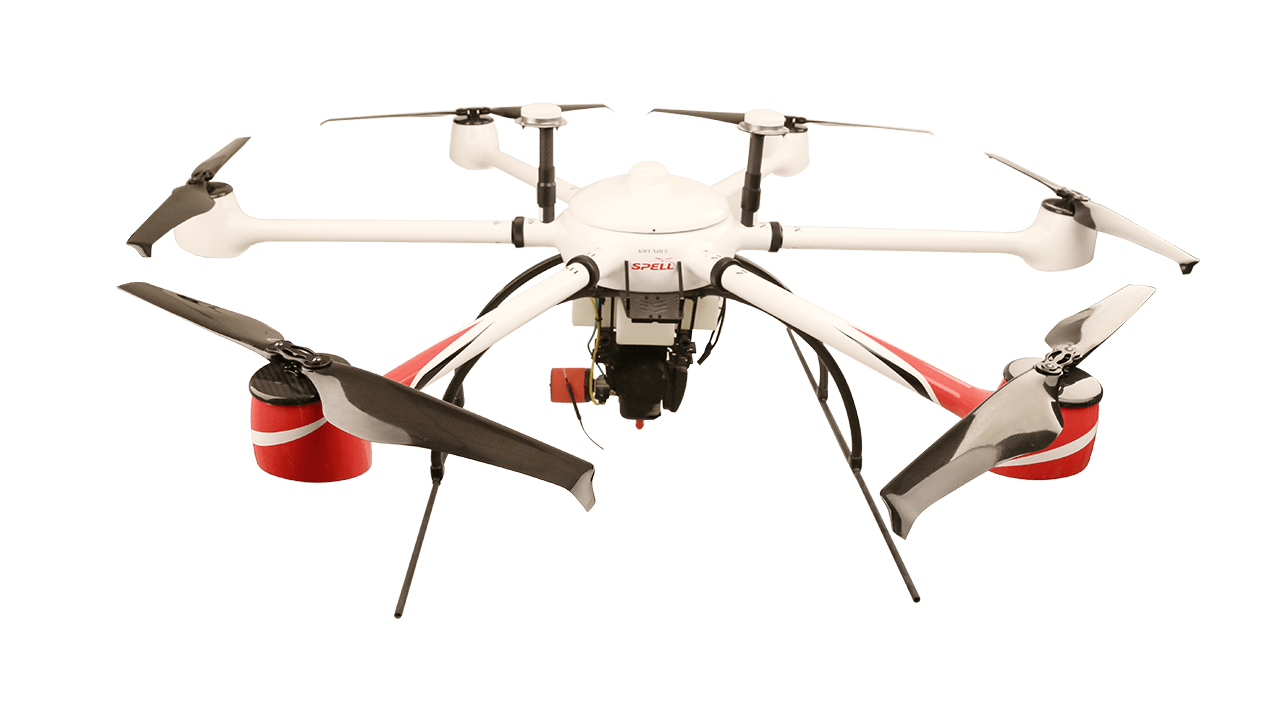

The main body of the working body adopts imported high-strength, high-rigidity carbon fiber composite materials, and one-piece molding technology.
| FEATURES | |
| Maximum wingspan | 2323 ±20 mm |
| Wheelbase of symmetrical motor | 1600 ±20 mm |
| Fuel tank volume | 3L |
| No-load take-off weight | 16 ±0.5 Kg |
| Maximum take-off weight | ≤ 18 Kg |
| Mission load | ≥ 2 Kg |
| No-load hovering time | ≥ 160 min (below 1000 m above sea level, 25 °C) |
| 2 Kg load hovering time | ≥ 90 min (below 1000 m above sea level, 25 °C) |
| Maximum flight speed | 12 m/s |
| Maximum climbing speed | 2 m/s |
| Maximum descending speed | 2 m/s |
| Relative flight altitude | 1000 m |
| Maximum working altitude | 2000 m |
| Wind resistance | 10.8 ∼ 13.8 m/s |
| GPS hovering accuracy | Vertical: ±1.5 m; Horizontal: ±2 m |
| Maximum remote control distance | 7 Km |
| Ground station maximum control distance | 10 Km |
| Arm packing box size | 720*450*390 ±20 mm |
| Body packing box size | 1065*530*360 ±20 mm |
| Empty drone weight | 14 ±0.2 Kg |
