Light Solution
Governments at all levels of major party and government meetings, various gatherings and other activities, the urgent need for effective drone prevention technology.
Conference sites, such as large international conferences, major home diplomatic events, sporting events site, large music events site and other sneak peek can not be prevented, a high concentration of personnel, security prevention is also vital.
The military management area is a highly classified area. Once a drone with undesirable purposes flies over the military restricted area, there may be significant hidden dangers such as secretly filming military facilities, dropping dangerous items, and broadcasting undesirable propaganda leaflets, which seriously affect the security of the military management area.
As an important national penal execution organ, the unlawful elements with the help of drones to the prison delivery of prohibited items, theft of supervisory information, premeditated assistance to escape, the launch of terrorist attacks occur from time to time, posing a serious real threat to the security of the prison.
In recent years, rogue drones have invaded airport clearing areas repeatedly, such as the drone incident at Hangzhou Xiaoshan Airport which caused extensive delays to airport flights and seriously threatened the normal operation of the airport and the safety of passenger’s lives and property.
Energy companies are highly automated and have great commercial value. And the enterprises area prone to produce flammable and explosive gases in the process. Once the drone comes close, it may cause significant casualties and economic losses.
Radar Technology
Radar is through the emission of electromagnetic waves to irradiate the target and receive its echo, after the relevant technical means of processing, to extract certain information about the target object (such as the distance between the target and the radar, the rate of change of distance or radial speed, bearing, height and other information).
Advantages: all-weather, all-day detection, not blocked by fog, clouds and rain.
Advantages: easy to miss the phenomenon, and the surrounding environment has electromagnetic pollution, affecting the surrounding normal radio and GPS signals, expensive.
Photovoltaic Technology
Optical detection is to collect UAV images through visible imaging, infrared imaging, thermal imaging and other technologies, and to locate, track and identify the UAV. It is a multi-band precision detection and imaging equipment with high mobility, high automation, and the ability to work stably for a long time.
Advantages: accurate detection at close range, with intuitive image data.
Disadvantages: vulnerable to obscuration, close distance, subject to the influence of the weather, highly dependent on manual control and identification.
Radio Spectrum Technology
Radio spectrum detection is the use of radio frequency characteristics, according to the frequency to capture the signal, belongs to a passive electromagnetic monitoring method, has a strong target, usually for the UAV communication band are 433M, 900M, 2.4G, 5.8G, etc.
Advantages: can be automated operations, equipment is relatively small.
Disadvantages: easy to miss, false alarm phenomeon and detection of the short distance, can not distinguish between enemy and UAV.
Cognitive Radio Protocol – Resolution Technology
Cognitive radio protocol analysis technology is a technology to accurately detect and identify UAVs through reverse analysis of UAV communication protocols.
Advantages: the detection effect has a long distance and wide range, can pre-alarm, accurately distinguish the enemy from us, and can realize the unattended function, and has no effect on the surrounding electromagnetic environment.
Disadvantages: involves radio communication, reverse analysis, security engineering and other multidisciplinary intersection, technical difficulties..
Kit Detection and Jamming
| Detection frequency band Key frequency band Detection distance Strike frequency band Strike distance Directional accuracy Protection level Dimension of main machine Weight | 30MHz ∼ 6GHz full frequency band scanning, detection, display 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.8GHz 3km, 5km, 10km 900MHz, 1.5GHz, 2.4GHz, 5.8GHz multi-band can be customized 2km, 3km 3° IP66 480mm x 400mm x 245mm (L x W x D) 22.4kg |
Fixed submerged shield inspection and fight one function is complete, leading performance.. Equipment with professional – grade waterproof and dustproof design, continuous operation in the harsh outdoor environment, stable and reliable, can be widely used in the institutional compound, military industrial sites, prisons, water conservancy and hydropower, petroleum and petrochemicals and other fixed areas of installation and deployment, long-term protection.
Precise identification
Can accurately identify different drones of the same brand and model, and identify the electronic fingerprint of the drone.
Defensive strikes
Combination of narrow-band lowpower precision strikes and wideband high-power jamming.
Black & White List
One click to mark the black and white list, whitelisted drones are not interfered with.
Unmanned
With fully automatic defense on, it can effectively defend against drone invasion.

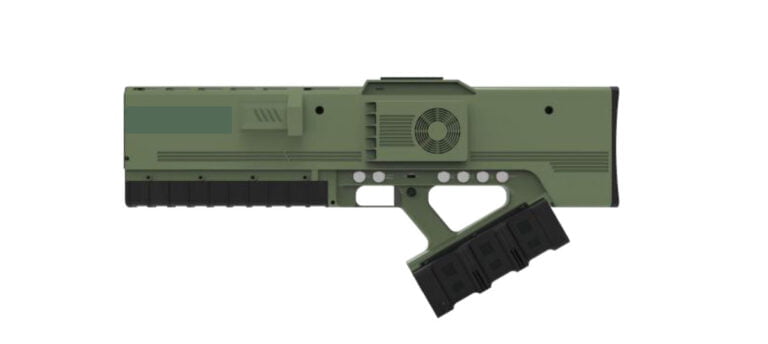

Hendheld Jammer
| Support frequency band Detection distance Strike distance Directional accuracy Power supply method Weight Dimension | 1.5GHz, 2.4GHz, 5.8GHz (Support 300MHz ∼ 2GHz power adjustable) ≥ 1.5km ≥ 1km 30° (RMS) Lithium Battery ≤ 5kg (include battery) 760mm x 373mm x 100 mm (L x W x D) |

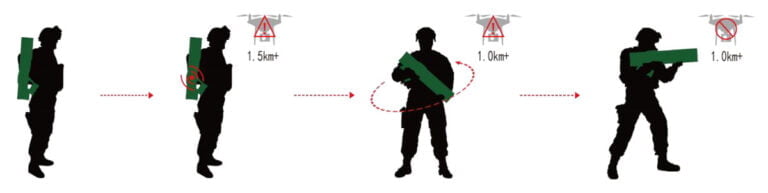

The product adopts the design concept of “one piece of inspection and fight”, integrating detection and early warning, target seeking, interference and strike, and display and control network functions, which can be used independently in a single set or multiple sets of equipment network, display and control terminal visual display equipment and target status, with intelligent scheduling, integrated defense functions, suitable for public security, armed police, troops and other types of single – armed duty scenarios.

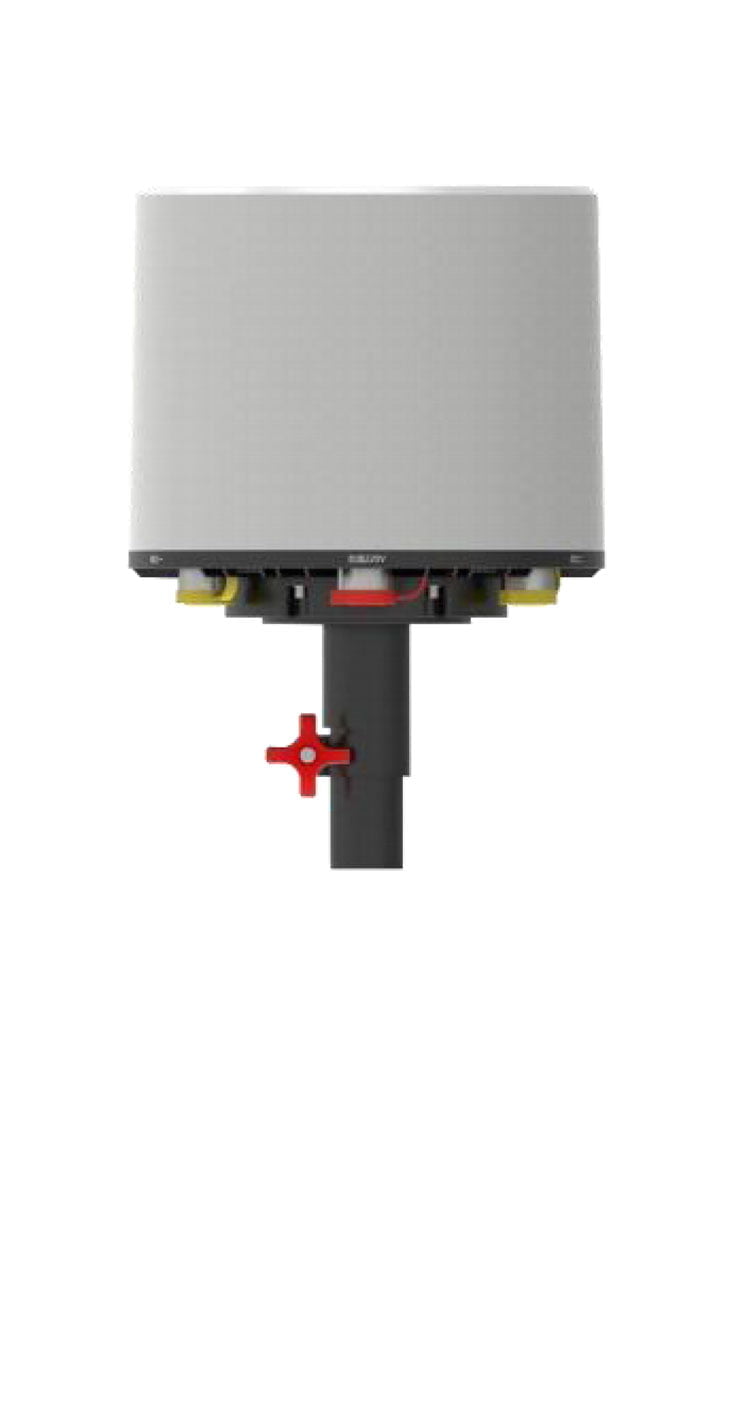

Detection Antenna
| Detection frequency band Detection distance Directional accuracy Number of detections Reconnaissance airspace Weight Dimension | 30MHz ∼ 6GHz Full-band scanning, detection and display 3km, 5kn — ≥ 30 drones 360° full airspace 195mm x 218mm ≤ 2.5 kg |
The system adopts integrated design, high integration, good scalability, strong adaptability, can be organically integrated with other security systems, suitable for aviation airports, petrochemical, large venues and other areas of long-term fixed protection, can also be deployed with the vehicle mobile applications in public security law enforcement, armed police special duties, troops patrol and other dynamic accompanying security.
Safety
Only receive, not transmit, no impact on the surrounding environment, zero interference.
Full-band Frequency Coverage
Support 30MHz ∼ 6GHz full-band detection, display and protocol analysis of key frequency bands.
Black & White List
Can accurately identify different drones of the same brand and model, and identify the electronic fingerprint of the drone to achieve Black & White list marking.
Kit Detection and Spoofing
| Detection frequency band Key frequency band Detection distance Active frequency band Transmitting power Distance of action Direction finding accuracy Dimension Weight | 30MHz ∼ 6GHz full frequency band scanning, detection, display 433MHz, 900MHz, 1.4GHz, 2.4GHz, 5.8GHz 3km, 5km, 10km 1575.42MHz (GPS-L1), 1561.098MHZ (BDS-B1), 1602MHz (GLONASS-L1) < 10nW 500m ∼ 1000m 3° 410mm x 330mm x 190mm (L x W x D) 14.8kg |
The fixed type sky shield detects and decoys the integrated equipment with complete functions and leading performance. Equipment with professional – grade waterproof and dustproof design, continuous and reliable operation in the harsh outdoor environment, can be widely used in fixed deployment, long-term protection.
Precise identification
Can identify different drones of the same brand and model from a long distance and accurately, and identify the electronic fingerprint of the drone.
Proactive Defense
After discovering the rogue drones, take the initiative to transmit signals to implement luring, forced landing, and repelling, etc. to protect the safety of the area.
Unmanned
When fully automated defense is turned on, it can automatically detect and defend against drone intrusion without manual guarding.
Fixed Type
| Detection method Detection distance | Active scanning, searching, identification, tracking (no need for radar, radio and other equipment guidance) 500m (Typical working condition) Horizontal: 360°; Vertical: -15 ∼ 15° (Adjustable) 6mm ∼ 138mm (Adjustable) RJ-45 113mm x 208mm (Maximum height with column) 24.5kg (Include stand) |
Based on the design concept of “autonomous drive and independent operation”, the system perfectly integrates precision servo gimbal and intelligent AI vision technology, and successfully breaks through the dependence of traditional optoelectronic system on radar/radio spectrum detection equipment, with outstanding performance, complete functions and distinctive features. The system integrates active search, intelligent identification, target positioning and photo forensics functions, and can detect and identify and position drones in the surrounding low altitude range 24 hours a day for forensics. High integration, good scalability, strong adaptability, can be widely used in aviation airports, petrochemical, large venues and other core protection areas for long-term fixed deployment, can also be deployed with the vehicle mobile applications in public security law enforcement, armed police special duties, troops patrol and other dynamic accompanying security.
Independent operation
The system works without any equipment such as radar or radio spectrum, and is completely selfcontained and independent.
Proactive discovery
Based on servo gimbal, it automatically scans and searches the surrounding airspace, and alerts when a drone is found.
Intelligent Analytics
Using self-developed advanced intelligent visual analysis and AI recognition algorithm, it can accurately identify all kinds of drones.
Cost-effective
A single set of equipment with full functionality and low investment, which can realize both as a soldier and work in concert with other equipment.
Easy to use
The system is automatically guarded by one key, with automatic detection and alarm, without human intervention.
Highly adaptable
System integration in one, high protection level, suitable for all kinds of security scenarios.
